| PERFORMANCE |
| Processor |
Intel Core i5-12400, 6C (6P + 0E) / 12T, P-core 2.5 / 4.4GHz, 18MB
|
| Graphics |
NVIDIA GeForce GTX 1660 SUPER 6GB GDDR6
|
| Chipset |
Intel B660
|
| Memory |
8GB UDIMM ARMOR DDR5-4800
|
| Memory Slots |
Four DDR5 UDIMM slots, dual-channel capable
|
| Max Memory |
Up to 128GB DDR5-4800
|
| Storage |
512GB SSD M.2 2280 PCIe 4.0x4 NVMe
|
| Optane Memory |
None
|
| Storage Support |
Up to five drives, 2x 3.5" HDD + 2x M.2 SSD + 1x open 2.5 HDD Bay • 3.5" HDD up to 2TB each • M.2 SSD up to 1TB each
|
| Card Reader |
None
|
| Optical |
None
|
| Audio Chip |
High Definition (HD) Audio, Realtek ALC897-Q codec
|
| Power Supply |
500W 85%
|
| DESIGN |
| Keyboard |
USB Calliope Keyboard, Black, English
|
| Mouse |
USB Calliope Mouse, Black
|
| Optional Bay |
None
|
| Expansion Slots |
- One PCIe 4.0 x16
- One PCIe 3.0 x4
- Three M.2 slots (one for WLAN, two for SSD)
|
| Case Color |
Black
|
| System Lighting |
Legion OY iconic LED + Internal ambient lighting
|
| Chassis |
Transparent cover + Inner decorate cover
|
| Cooler |
Advance Pro Air Cooler
|
| System Fan |
Advance Pro Air Cooling with ARGB (1x Rear + 2x Front)
|
| Carry Handle |
Carry Handle
|
| Form Factor |
Tower (26L)
|
| Dimensions (WxDxH) |
205 x 395.4 x 420 mm (8.1 x 15.57 x 16.54 inches)
|
| Weight |
14 kg (30.86 lbs)
|
| CONNECTIVITY |
| Ethernet |
Integrated 100/1000M
|
| WLAN + Bluetooth |
Wi-Fi 6 11ax, 2x2 + BT5.1
|
| Top Ports |
- 2x USB 3.2 Gen 1
- 1x headphone (3.5mm)
- 1x microphone (3.5mm)
|

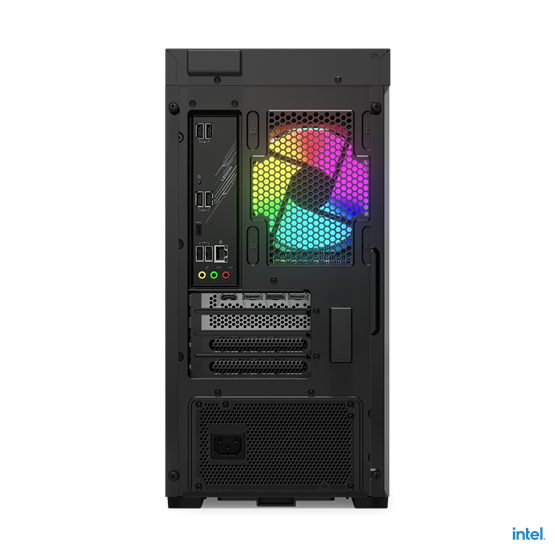

| Rear Ports |
- 4x USB 2.0
- 2x USB 3.2 Gen 1
- 3x audio connector (3.5mm)
- 1x USB-C 3.2 Gen 2 (support data transfer and 5V@3A charging)
- 1x Lighting switch
- 1x Ethernet (RJ-45)
- 1x power connector
|
| SECURITY & PRIVACY |
| Security Chip |
Firmware TPM 2.0 integrated in chipset
|
| SERVICE |
| Base Warranty |
1-year, Depot
|
| Included Upgrade |
2Y Onsite -Idea DT (ESS) (5WS0X58224)
|
| CERTIFICATIONS |
| Green Certifications |
|
| SOFTWARE |
| Operating System |
Windows 11 Home 64 Single Language, English
|
